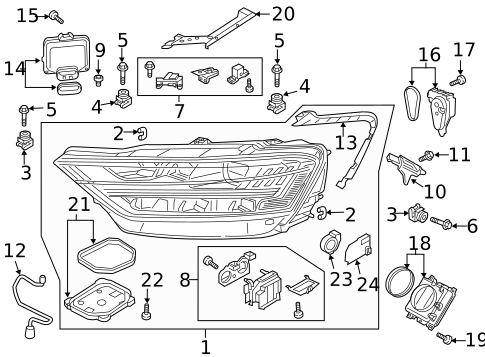

Headlamp Components for 2020 Audi A8 Quattro
No.
Part # / Description / Price
Price
1
Composite Assembly
Audi
Audi Positions: Left
Description: A8 Quattro. Left. With matrix beam, 2019-21, with laser beam. S8.
1
Composite Assembly Audi
Audi Positions: Right
Description: A8 Quattro. Right. With matrix beam, 2019-21, with laser beam. S8.
1
Composite Assembly Audi
Audi Positions: Right
Description: A8 Quattro. Right. With matrix beam, 2019-21, without laser beam.
1
Composite Assembly Audi
Audi Positions: Left
Description: A8 Quattro. Left. With matrix beam, 2019-21, without laser beam.
2
Headlamp Assembly Cap Audi
Audi Positions: Right
Notes: PARTS: Part included with headlamp assembly.
Description: 2012-15, with halogen lamps. 2012-15, with xenon headlamps, without directional beam. Without matrix beam, 2019-21.
5
Headlamp Assembly Bolt Audi
Audi Positions: Left
Description: 2012-15, with halogen lamps. 2015-18. 2011-14, hid, with directional beam. 2011-14, led. M6x45. 2016-18 with led headlamps.
MSRP $3.55 CAD
$3.02 CAD
MSRP $3.55 CAD
$3.02 CAD
6
Daytime Run Lamp Bolt Audi
Audi Positions: Right
Description: 2016-18, hid. 2016-18, led. Sedan/wagon,. Without matrix beam, 2019-21, m6x30. 2015. Without matrix beam, 2022-25, m6x30.
7
Repair Kit Audi
Audi Positions: Right
Notes: PARTS: Part is only used when the mounting bracket is broken off on the back of the headlamp. It is not needed if the headlamp assembly is replaced.
Description: With matrix beam, 2019-21, housing.
7
Repair Kit Audi
Audi Positions: Left
Notes: PARTS: Part is only used when the mounting bracket is broken off on the back of the headlamp. It is not needed if the headlamp assembly is replaced.
Description: With matrix beam, 2019-21, housing.
8
Repair Kit Audi
Audi Positions: Right
Notes: PARTS: Part included with headlamp assembly.
Description: With matrix beam, 2019-21, fan bracket.
8
Repair Kit Audi
Audi Positions: Left
Notes: PARTS: Part included with headlamp assembly.
Description: With matrix beam, 2019-21, fan bracket.
11
MSRP $1.35 CAD
$1.15 CAD
13
Seal Audi
Audi Positions: Left
Notes: PARTS: Part included with headlamp assembly.
Description: With matrix beam, 2019-21.
13
Seal Audi
Audi Positions: Right
Notes: PARTS: Part included with headlamp assembly.
Description: With matrix beam, 2019-21.
14
Control Module Audi
Audi Positions: Left
Description: A8 Quattro. With matrix beam, 2019-21, with laser beam. S8.
14
Control Module Audi
Audi Positions: Right
Description: Led lamps, 2018-20. Hid headlamps. A8 Quattro. Without laser beam. SQ5. Led headlamps. Headlamp control module. Q5 PHEV.
MSRP $1,027.00 CAD
$821.60 CAD
MSRP $1,027.00 CAD
$821.60 CAD
21
Cover Audi
Audi Positions: Right
Notes: PARTS: Part included with headlamp assembly.
Description: With matrix beam, 2019-21.
23
Fan Audi
Audi Positions: Left
Notes: PARTS: Part included with headlamp assembly.
Description: With matrix beam, without laser light. With matrix beam, 2019-21. With multi beam.
MSRP $393.00 CAD
$334.05 CAD
MSRP $393.00 CAD
$334.05 CAD
23
Fan Audi
Audi Positions: Right
Notes: PARTS: Part included with headlamp assembly.
Description: With matrix beam, without laser light. With matrix beam, 2019-21. With multi beam.
24
Circuit Board Audi
Audi Positions: Left
Notes: PARTS: Part included with headlamp assembly.
Description: With matrix beam, 2019-21.
24
Circuit Board Audi
Audi Positions: Right
Notes: PARTS: Part included with headlamp assembly.
Description: With matrix beam, 2019-21.
No.
Part # / Description / Price
Price
1
Composite Assembly Audi
Audi Positions: Left
Description: A8 Quattro. Left. Without matrix beam, 2019-21.
1
Composite Assembly Audi
Audi Positions: Right
Description: A8 Quattro. Right. Without matrix beam, 2019-21.
2
Headlamp Assembly Cap Audi
Audi Positions: Left
Notes: PARTS: Part included with headlamp assembly.
Description: 2012-15, with halogen lamps. 2012-15, with xenon headlamps, without directional beam. Without matrix beam, 2019-21.
5
Headlamp Assembly Bolt Audi
Audi Positions: Right
Description: 2012-15, with halogen lamps. 2015-18. 2011-14, hid, with directional beam. 2011-14, led. M6x45. 2016-18 with led headlamps.
MSRP $3.55 CAD
$3.02 CAD
MSRP $3.55 CAD
$3.02 CAD
6
Daytime Run Lamp Bolt Audi
Audi Positions: Left
Description: 2016-18, hid. 2016-18, led. Sedan/wagon,. Without matrix beam, 2019-21, m6x30. 2015. Without matrix beam, 2022-25, m6x30.
7
Repair Kit Audi
Audi Positions: Left
Notes: PARTS: Part is only used when the mounting bracket is broken off on the back of the headlamp. It is not needed if the headlamp assembly is replaced.
Description: Without matrix beam, 2019-21, housing.
7
Repair Kit Audi
Audi Positions: Right
Notes: PARTS: Part is only used when the mounting bracket is broken off on the back of the headlamp. It is not needed if the headlamp assembly is replaced.
Description: Without matrix beam, 2019-21, housing.
8
Repair Kit Audi
Audi Positions: Left
Notes: PARTS: Part included with headlamp assembly.
Description: Without matrix beam, 2019-21, adjuster.
11
Trim Cover Screw Audi
Audi Positions: Right
Notes: PARTS: Part included with headlamp assembly.
MSRP $1.35 CAD
$1.15 CAD
MSRP $1.35 CAD
$1.15 CAD
18
