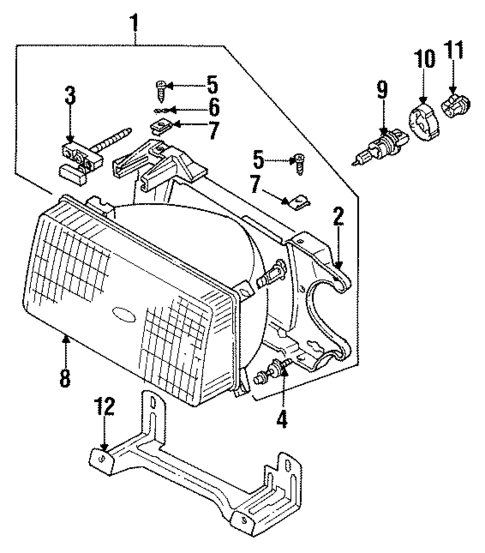

Headlamp Components for 1985 Audi Coupe
No.
Part # / Description / Price
Price
3
Mount Frame Screw
Audi
Audi Description: Composite bulb type, horizontal adjuster. Standard sealed beam or composite headlamps.
5
Adjuster Screw Audi
Audi Description: 1985-87. Composite bulb type, frame screw.
MSRP $2.55 CAD
$2.17 CAD
MSRP $2.55 CAD
$2.17 CAD
8
Headlamp Assembly Audi
Audi Positions: Left
Notes: PARTS: Not available as part of a assembly.
Description: 1985-87. Composite bulb type.
8
Headlamp Assembly Audi
Audi Positions: Right
Notes: PARTS: Not available as part of a assembly.
Description: 1985-87. Composite bulb type.
9
Headlamp Bulb Audi
Audi Notes: PARTS: Not available as part of a assembly.
Description: Single bulbs. Without S4, A6, S6. 200 series. 100 series. 1985-87, halogen. With turbo. Composite bulb type.
10
Socket Grommet Audi
Audi Notes: PARTS: Not available as part of a assembly.
Description: 200 series. 1985-87. Without turbo, pin socket. Composite bulb type.
11
Retainer Ring Pin Audi
Audi Notes: PARTS: Not available as part of a assembly.
Description: Composite type with turbo. Without S4, A6, S6. 200 series. 1985-87. 100 series. Composite bulb type.
12
Headlamp Frame Support Audi
Audi Positions: Right
Notes: PARTS: Not available as part of a assembly.
Description: 1985-87, lower. Composite bulb type.
12
Headlamp Frame Support Audi
Audi Positions: Left
Notes: PARTS: Not available as part of a assembly.
Description: 1985-87, lower. Composite bulb type.

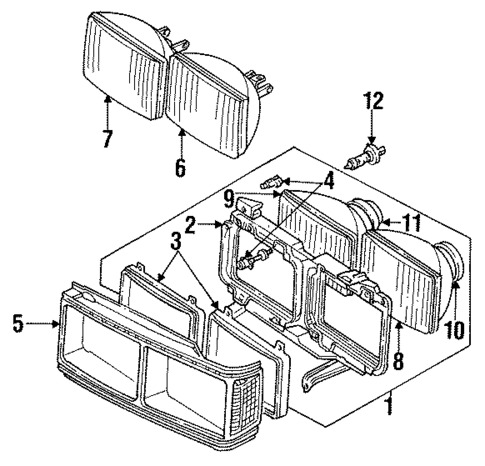

No.
Part # / Description / Price
Price
2
Mount Frame Audi
Audi Positions: Right
Description: Standard sealed beam or composite headlamps. 1980-84, frame, from 81a0215474.
2
Mount Frame Audi
Audi Positions: Left
Description: Standard sealed beam or composite headlamps. 1980-84, frame, from 81a0215474.
3
Sealed Beam Retainer Ring Audi
Audi Description: Sealed beam type. Standard sealed beam or composite headlamps. 1980-84.
4
Mount Frame Screw Audi
Audi Notes: PARTS: Adjusting screws come as a set.
Description: Composite bulb type, horizontal adjuster. Standard sealed beam or composite headlamps.
5
Door Audi
Audi Positions: Left
Notes: PARTS: Not available as a assembly.
Description: Standard sealed beam or composite headlamps. 1980-84, from 81a0215474.
5
Door Audi
Audi Positions: Right
Notes: PARTS: Not available as a assembly.
Description: Standard sealed beam or composite headlamps. 1980-84, from 81a0215474.
6
Sealed Beam Audi
Audi Positions: Left
Notes: PARTS: Not available as a assembly.
Description: Sealed beam type, outer. Standard sealed beam or composite headlamps, outer.
7
Sealed Beam Audi
Audi Positions: Left
Notes: PARTS: Not available as a assembly.
Description: 5000. Inboard. Sealed beam type, inner. Standard sealed beam or composite headlamps, inner. Coupe.
